Terraform - VPC, EC2, Autoscaling

- AWS

0. 파일 구조



               terraform

aws-set   ec2-alb



1. VPC

# mkdir aws-set && cd $_

# vi variables.tf

variable "security_group_name" {
  description = "The name of the security group"
  type        = string
  default     = "terraform-example-instance"
}



# vi main.tf

provider "aws" {
  region = "ap-northeast-2"
}

* VPC

resource "aws_vpc" "test_vpc" {
  cidr_block  = "192.168.0.0/16"
  enable_dns_hostnames = true
  enable_dns_support = true
  instance_tenancy = "default"

  tags = {
    Name = "test-vpc"
  }
}

data "aws_availability_zones" "available" {
  state = "available" # 리전의 가용영역 중 사용 가능한 영역의 정보를 가져온다
}

resource "aws_subnet" "test-pub_2a" { # resource type # resource name
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.0.0/20"
  map_public_ip_on_launch = true # 퍼블릭 IP 할당 여부
  availability_zone = data.aws_availability_zones.available.names[0] # 가용 영역의 이름을 가져온다(ap-northeast-2a)
  tags = {
    Name = "test-pub-2a"
  }
}

resource "aws_subnet" "test-pub_2b" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.16.0/20"
  map_public_ip_on_launch = true
  availability_zone = data.aws_availability_zones.available.names[1]
  tags = {
    Name = "test-pub-2b"
  }
}

resource "aws_subnet" "test-pub_2c" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.32.0/20"
  map_public_ip_on_launch = true
  availability_zone = data.aws_availability_zones.available.names[2]
  tags = {
    Name = "test-pub-2c"
  }
}

resource "aws_subnet" "test-pub_2d" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.48.0/20"
  map_public_ip_on_launch = true
  availability_zone = data.aws_availability_zones.available.names[3]
  tags = {
    Name = "test-pub-2d"
  }
}

resource "aws_internet_gateway" "test_igw" {
  vpc_id = aws_vpc.test_vpc.id
  tags = {
    Name = "test-igw"
  }
}

resource "aws_subnet" "test-pvt_2a" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.64.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[0]
  tags = {
    Name = "test-pvt-2a"
  }
}

resource "aws_subnet" "test-pvt_2b" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.80.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[1]
  tags = {
    Name = "test-pvt-2b"
  }
}

resource "aws_subnet" "test-pvt_2c" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.96.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[2]
  tags = {
    Name = "test-pvt-2c"
  }
}

resource "aws_subnet" "test-pvt_2d" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.112.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[3]
  tags = {
    Name = "test-pvt-2d"
  }
}

resource "aws_route_table" "test_pub_rtb" {
  vpc_id = aws_vpc.test_vpc.id

  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.test_igw.id
  }
  tags = {
    Name = "test-pub-rtb"
  }
}

resource "aws_route_table" "test_pvt_rtb" {
  vpc_id = aws_vpc.test_vpc.id

  tags = {
    Name = "test-pvt-rtb"
  }
}

resource "aws_route_table_association" "test-pub_2a_association" {
  subnet_id = aws_subnet.test-pub_2a.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pub_2b_association" {
  subnet_id = aws_subnet.test-pub_2b.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pub_2c_association" {
  subnet_id = aws_subnet.test-pub_2c.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pub_2d_association" {
  subnet_id = aws_subnet.test-pub_2d.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pvt_2a_association" {
  subnet_id = aws_subnet.test-pvt_2a.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

resource "aws_route_table_association" "test-pvt_2b_association" {
  subnet_id = aws_subnet.test-pvt_2b.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

resource "aws_route_table_association" "test-pvt_2c_association" {
  subnet_id = aws_subnet.test-pvt_2c.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

resource "aws_route_table_association" "test-pvt_2d_association" {
  subnet_id = aws_subnet.test-pvt_2d.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

* EC2

resource "aws_instance" "example" {
  ami                    = "ami-035da6a0773842f64"
  instance_type          = "t2.micro"
  subnet_id              = aws_subnet.test-pub_2a.id
  vpc_security_group_ids = [aws_security_group.instance.id]
  key_name               = "test-key"
  user_data              = file("user-data.sh")

  tags = {
    Name = "terraform-example"
  }
}

resource "aws_security_group" "instance" {
  vpc_id = aws_vpc.test_vpc.id
  name = var.security_group_name

  ingress {
    from_port   = 80
    to_port     = 80
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  ingress {
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = ["106.253.56.124/32"]
  }
  ingress {
    # from to range의 의미 from ~ to 까지의 포트로 사용자가 접근하면 허용한다.
    from_port   = -1
    to_port     = -1
    protocol    = "icmp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
  tags = {
    Name = "terraform-sg"
  }
}

* vi outputs.tf

output "public_ip" {
  value       = aws_instance.example.public_ip
  description = "The public IP of the Instance"
}

output "public_dns" {
  value       = aws_instance.example.public_dns
  description = "The Public dns of the Instance"
}

output "private_ip" {
  value       = aws_instance.example.private_ip
  description = "The Private_ip of the Instance"
}

# terraform init
# terraform plan
# terraform apply (-auto-approve 옵션을 추가하면 yes 생략 가능)
# terraform output public_ip
# terraform destroy (-auto-approve 옵션을 추가하면 yes 생략 가능)

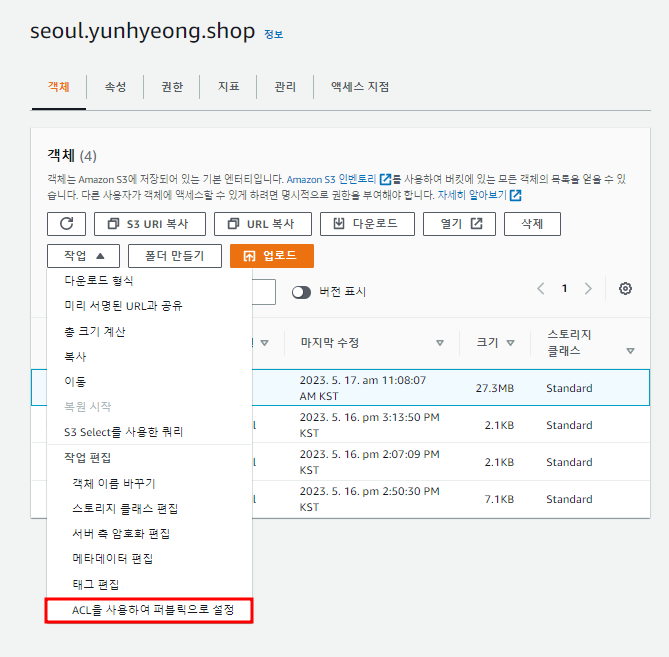

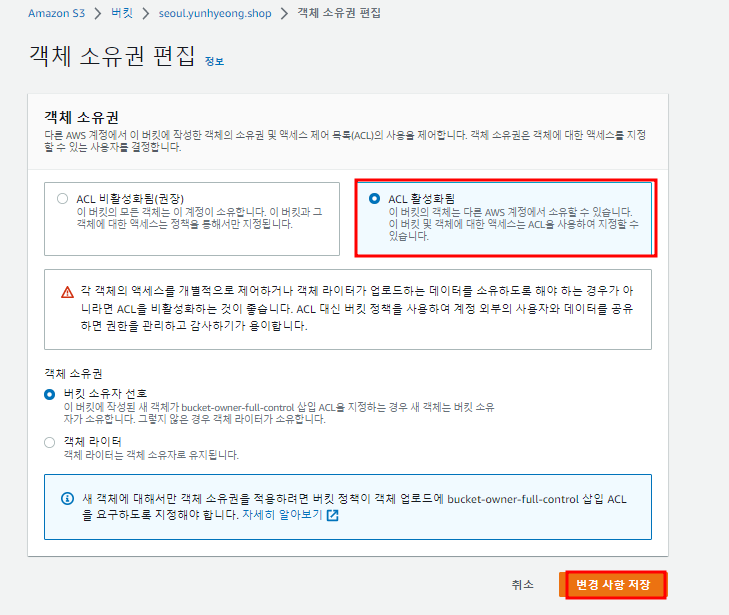

* acl 설정

- 처음 사용자 데이터에서 이상이 있어서 S3버킷의 ACL 부분을 활성화함

- food.tar 파일을 퍼블릭으로 설정

- terraform destroy 후 terraform apply.



2. ec2 alb

# mkdir ec2-alb && cd $_
# vi main.tf

provider "aws" {
  region = "ap-northeast-2"
}

resource "aws_vpc" "test_vpc" {
  cidr_block  = "192.168.0.0/16"
  enable_dns_hostnames = true # ec2에 dns 주소 부여
  enable_dns_support = true
  instance_tenancy = "default"

  tags = {
    Name = "test-vpc"
  }
}

data "aws_availability_zones" "available" {
  state = "available" # 리전의 가용영역 중 사용 가능한 영역의 정보를 가져온다
}

resource "aws_subnet" "test-pub_2a" { # resource type # resource name
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.0.0/20"
  map_public_ip_on_launch = true # 퍼블릭 IP 할당 여부
  availability_zone = data.aws_availability_zones.available.names[0] # 가용 영역의 이름을 가져온다(ap-northeast-2a)
  tags = {
    Name = "test-pub-2a"
  }
}

resource "aws_subnet" "test-pub_2b" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.16.0/20"
  map_public_ip_on_launch = true
  availability_zone = data.aws_availability_zones.available.names[1]
  tags = {
    Name = "test-pub-2b"
  }
}

resource "aws_subnet" "test-pub_2c" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.32.0/20"
  map_public_ip_on_launch = true
  availability_zone = data.aws_availability_zones.available.names[2]
  tags = {
    Name = "test-pub-2c"
  }
}

resource "aws_subnet" "test-pub_2d" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.48.0/20"
  map_public_ip_on_launch = true
  availability_zone = data.aws_availability_zones.available.names[3]
  tags = {
    Name = "test-pub-2d"
  }
}

resource "aws_internet_gateway" "test_igw" {
  vpc_id = aws_vpc.test_vpc.id
  tags = {
    Name = "test-igw"
  }
}

resource "aws_subnet" "test-pvt_2a" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.64.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[0]
  tags = {
    Name = "test-pvt-2a"
  }
}

resource "aws_subnet" "test-pvt_2b" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.80.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[1]
  tags = {
    Name = "test-pvt-2b"
  }
}

resource "aws_subnet" "test-pvt_2c" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.96.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[2]
  tags = {
    Name = "test-pvt-2c"
  }
}

resource "aws_subnet" "test-pvt_2d" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.112.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[3]
  tags = {
    Name = "test-pvt-2d"
  }
}

resource "aws_route_table" "test_pub_rtb" {
  vpc_id = aws_vpc.test_vpc.id

  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.test_igw.id
  }
  tags = {
    Name = "test-pub-rtb"
  }
}

resource "aws_route_table" "test_pvt_rtb" {
  vpc_id = aws_vpc.test_vpc.id

  tags = {
    Name = "test-pvt-rtb"
  }
}

resource "aws_route_table_association" "test-pub_2a_association" {
  subnet_id = aws_subnet.test-pub_2a.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pub_2b_association" {
  subnet_id = aws_subnet.test-pub_2b.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pub_2c_association" {
  subnet_id = aws_subnet.test-pub_2c.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pub_2d_association" {
  subnet_id = aws_subnet.test-pub_2d.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pvt_2a_association" {
  subnet_id = aws_subnet.test-pvt_2a.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

resource "aws_route_table_association" "test-pvt_2b_association" {
  subnet_id = aws_subnet.test-pvt_2b.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

resource "aws_route_table_association" "test-pvt_2c_association" {
  subnet_id = aws_subnet.test-pvt_2c.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

resource "aws_route_table_association" "test-pvt_2d_association" {
  subnet_id = aws_subnet.test-pvt_2d.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

variable "security_group_name" {
  description = "The name of the security group"
  type        = string
  default     = "test-sg-alb"
}

resource "aws_security_group" "test_web_sg_alb" {
  name   = var.security_group_name
#  vpc_id = data.aws_vpc.test_vpc.id
  vpc_id = aws_vpc.test_vpc.id
  ingress {
    from_port   = 80
    to_port     = 80
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  ingress {
    from_port   = 443
    to_port     = 443
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
  tags = {
    Name = "test-sg-alb"
  }
}

resource "aws_lb" "frontend" {
  name               = "alb-example"
  internal           = false
  load_balancer_type = "application"
  security_groups    = [aws_security_group.test_web_sg_alb.id]
  subnets            = [
    aws_subnet.test-pub_2a.id,
    aws_subnet.test-pub_2c.id
  ]

  tags = {
    Name = "test-alb"
  }

  lifecycle { create_before_destroy = true }
}


resource "aws_instance" "alb_vm_01" {
  ami                    = "ami-035da6a0773842f64"
  instance_type          = "t2.micro"
  subnet_id              = aws_subnet.test-pub_2a.id
  vpc_security_group_ids = [aws_security_group.test_web_sg_alb.id]
  key_name  = "test-key"
  user_data = <<-EOF
              #! /bin/bash
              yum install -y httpd
              systemctl enable --now httpd
              echo "Hello, Terraform01" > /var/www/html/index.html
              EOF

  tags = {
    Name = "ALB01"
  }
}

resource "aws_instance" "alb_vm_02" {
  ami                    = "ami-035da6a0773842f64"
  instance_type          = "t2.micro"
  subnet_id              = aws_subnet.test-pub_2c.id
  vpc_security_group_ids = [aws_security_group.test_web_sg_alb.id]
  key_name  = "test-key"
  user_data = <<-EOF
              #! /bin/bash
              yum install -y httpd
              systemctl enable --now httpd
              echo "Hello, Terraform02" > /var/www/html/index.html
              EOF

  tags = {
    Name = "ALB02"
  }
}

resource "aws_lb_target_group" "tg" {
  name        = "TargetGroup"
  port        = 80
  target_type = "instance"
  protocol    = "HTTP"
  vpc_id      = aws_vpc.test_vpc.id

  health_check {
    path                = "/"
    protocol            = "HTTP"
    matcher             = "200"
    interval            = 15
    timeout             = 3
    healthy_threshold   = 2
    unhealthy_threshold = 2
  }
}
resource "aws_alb_target_group_attachment" "tgattachment01" {
  target_group_arn = aws_lb_target_group.tg.arn
  target_id        = aws_instance.alb_vm_01.id
  port             = 80
}
resource "aws_alb_target_group_attachment" "tgattachment02" {
  target_group_arn = aws_lb_target_group.tg.arn
  target_id        = aws_instance.alb_vm_02.id
  port             = 80
}

resource "aws_lb_listener" "front_end" {
  load_balancer_arn = aws_lb.frontend.arn
  port              = "80"
  protocol          = "HTTP"

  default_action {
    type             = "forward"
    target_group_arn = aws_lb_target_group.tg.arn
  }
}
output "lb_dns_name" {
  description = "The DNS name of the load balancer."
  value       = aws_lb.frontend.dns_name
}

# terraform init
# terraform validate (구성만 참조하고 원격 상태, 공급자 API 등과 같은 원격 서비스에 액세스하지 않고 디렉터리의 구성 파일을 유효성 검사합니다.)
# terraform plan
# terraform apply -auto-approve
# terraform output lb_dns_name
# terraform destroy -auto-approve



3. asg

# vi variables.tf

variable "instance_security_group_name" {
  description = "The name of the security group for the EC2 Instances"
  type        = string
  default     = "terraform-example-instance"
}

variable "http_port" {
  description = "The port the server will use for HTTP requests"
  type        = number
  default     = 80
}

variable "ssh_port" {
  description = "The port the server will use for SSH requests"
  type        = number
  default     = 22
}

variable "alb_name" {
  description = "The name of the ALB"
  type        = string
  default     = "terraform-asg-example"
}

variable "alb_security_group_name" {
  description = "The name of the security group for the ALB"
  type        = string
  default     = "terraform-example-alb"
}

# vi main.tf

provider "aws" {
  region = "ap-northeast-2"
}

### test-vpc ###

resource "aws_vpc" "test_vpc" {
  cidr_block  = "192.168.0.0/16"
  enable_dns_hostnames = true # ec2에 dns 주소 부여
  enable_dns_support = true
  instance_tenancy = "default"

  tags = {
    Name = "test-vpc"
  }
}

data "aws_availability_zones" "available" {
  state = "available" # 리전의 가용영역 중 사용 가능한 영역의 정보를 가져온다
}

resource "aws_subnet" "test-pub_2a" { # resource type # resource name
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.0.0/20"
  map_public_ip_on_launch = true # 퍼블릭 IP 할당 여부
  availability_zone = data.aws_availability_zones.available.names[0] # 가용 영역의 이름을 가져온다(ap-northeast-2a)
  tags = {
    Name = "test-pub-2a"
  }
}

resource "aws_subnet" "test-pub_2b" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.16.0/20"
  map_public_ip_on_launch = true
  availability_zone = data.aws_availability_zones.available.names[1]
  tags = {
    Name = "test-pub-2b"
  }
}

resource "aws_subnet" "test-pub_2c" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.32.0/20"
  map_public_ip_on_launch = true
  availability_zone = data.aws_availability_zones.available.names[2]
  tags = {
    Name = "test-pub-2c"
  }
}

resource "aws_subnet" "test-pub_2d" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.48.0/20"
  map_public_ip_on_launch = true
  availability_zone = data.aws_availability_zones.available.names[3]
  tags = {
    Name = "test-pub-2d"
  }
}

resource "aws_internet_gateway" "test_igw" {
  vpc_id = aws_vpc.test_vpc.id
  tags = {
    Name = "test-igw"
  }
}

resource "aws_subnet" "test-pvt_2a" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.64.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[0]
  tags = {
    Name = "test-pvt-2a"
  }
}

resource "aws_subnet" "test-pvt_2b" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.80.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[1]
  tags = {
    Name = "test-pvt-2b"
  }
}

resource "aws_subnet" "test-pvt_2c" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.96.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[2]
  tags = {
    Name = "test-pvt-2c"
  }
}

resource "aws_subnet" "test-pvt_2d" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.112.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[3]
  tags = {
    Name = "test-pvt-2d"
  }
}

resource "aws_route_table" "test_pub_rtb" {
  vpc_id = aws_vpc.test_vpc.id

  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.test_igw.id
  }
  tags = {
    Name = "test-pub-rtb"
  }
}

resource "aws_route_table" "test_pvt_rtb" {
  vpc_id = aws_vpc.test_vpc.id

  tags = {
    Name = "test-pvt-rtb"
  }
}

resource "aws_route_table_association" "test-pub_2a_association" {
  subnet_id = aws_subnet.test-pub_2a.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pub_2b_association" {
  subnet_id = aws_subnet.test-pub_2b.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pub_2c_association" {
  subnet_id = aws_subnet.test-pub_2c.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pub_2d_association" {
  subnet_id = aws_subnet.test-pub_2d.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pvt_2a_association" {
  subnet_id = aws_subnet.test-pvt_2a.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

resource "aws_route_table_association" "test-pvt_2b_association" {
  subnet_id = aws_subnet.test-pvt_2b.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

resource "aws_route_table_association" "test-pvt_2c_association" {
  subnet_id = aws_subnet.test-pvt_2c.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

resource "aws_route_table_association" "test-pvt_2d_association" {
  subnet_id = aws_subnet.test-pvt_2d.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

### asg ###

resource "aws_security_group" "instance" {
  name   = var.instance_security_group_name
  vpc_id = aws_vpc.test_vpc.id

  ingress {
    from_port   = var.http_port
    to_port     = var.http_port
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  ingress {
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  ingress {
    from_port   = -1
    to_port     = -1
    protocol    = "icmp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

resource "aws_launch_configuration" "example" {
  image_id        = "ami-035da6a0773842f64"
  instance_type   = "t2.micro"
  security_groups = [aws_security_group.instance.id]
  key_name        = "test-key"
  user_data       = file("user-data.sh")

  # Required when using a launch configuration with an auto scaling group.
  lifecycle {
    create_before_destroy = true
  }
}

resource "aws_autoscaling_group" "example" {
  launch_configuration = aws_launch_configuration.example.name
  vpc_zone_identifier  = [
    aws_subnet.test-pub_2a.id,
    aws_subnet.test-pub_2c.id
  ]

  target_group_arns = [aws_lb_target_group.asg.arn]
  health_check_type = "ELB"

  min_size         = 2
  desired_capacity = 2
  max_size         = 4

  tag {
    key                 = "Name"
    value               = "terraform-asg-example"
    propagate_at_launch = true
  }
}

resource "aws_lb" "example" {

  name               = var.alb_name

  load_balancer_type = "application"
  subnets            = [
    aws_subnet.test-pub_2a.id,
    aws_subnet.test-pub_2b.id,
    aws_subnet.test-pub_2c.id,
    aws_subnet.test-pub_2d.id
  ]
  security_groups    = [aws_security_group.alb.id]
}

resource "aws_lb_listener" "http" {
  load_balancer_arn = aws_lb.example.arn
  port              = var.http_port
  protocol          = "HTTP"

  default_action {
    type             = "forward"
    target_group_arn = aws_lb_target_group.asg.arn
  }
}

resource "aws_lb_target_group" "asg" {

  name = var.alb_name

  port     = var.http_port
  protocol = "HTTP"
  vpc_id   = aws_vpc.test_vpc.id

  health_check {
    path                = "/"
    protocol            = "HTTP"
    matcher             = "200"
    interval            = 15
    timeout             = 3
    healthy_threshold   = 2
    unhealthy_threshold = 2
  }
}

resource "aws_security_group" "alb" {
  vpc_id = aws_vpc.test_vpc.id
  name   = var.alb_security_group_name

  # Allow inbound HTTP requests
  ingress {
    from_port   = var.http_port
    to_port     = var.http_port
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  # Allow all outbound requests
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
}
resource "aws_autoscaling_policy" "scale_in" {
  name                   = "ScaleInPolicy"
  autoscaling_group_name = aws_autoscaling_group.example.name
  adjustment_type        = "ChangeInCapacity"
  scaling_adjustment     = -1
  cooldown               = 300
}

resource "aws_cloudwatch_metric_alarm" "scale_in" {
  alarm_description   = "Monitors CPU utilization for Terramino ASG"
  alarm_actions       = [aws_autoscaling_policy.scale_in.arn]
  alarm_name          = "ScaleInAlarm"
  comparison_operator = "LessThanOrEqualToThreshold"
  namespace           = "AWS/EC2"
  metric_name         = "CPUUtilization"
  threshold           = "30"
  evaluation_periods  = "1"
  period              = "300"
  statistic           = "Average"

  dimensions = {
    AutoScalingGroupName = aws_autoscaling_group.example.name
  }
}
resource "aws_autoscaling_policy" "scale_out" {
  name                   = "ScaleOutPolicy"
  autoscaling_group_name = aws_autoscaling_group.example.name
  adjustment_type        = "ChangeInCapacity"
  scaling_adjustment     = 1
  cooldown               = 300
}

resource "aws_cloudwatch_metric_alarm" "scale_out" {
  alarm_description   = "Monitors CPU utilization for Terramino ASG"
  alarm_actions       = [aws_autoscaling_policy.scale_out.arn]
  alarm_name          = "ScaleOutAlarm"
  comparison_operator = "GreaterThanOrEqualToThreshold"
  namespace           = "AWS/EC2"
  metric_name         = "CPUUtilization"
  threshold           = "70"
  evaluation_periods  = "1"
  period              = "300"
  statistic           = "Average"

  dimensions = {
    AutoScalingGroupName = aws_autoscaling_group.example.name
  }
}

# vi outputs.tf

output "alb_dns_name" {
  value       = aws_lb.example.dns_name
  description = "The domain name of the load balancer"
}

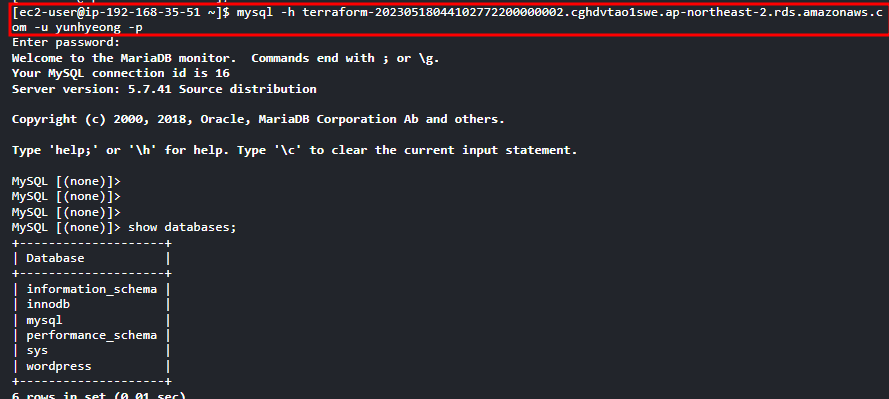

4. RDS

# cd ec2-asg

# vi main.tf

provider "aws" {
  region = "ap-northeast-2"
}

### test-vpc ###

resource "aws_vpc" "test_vpc" {
  cidr_block  = "192.168.0.0/16"
  enable_dns_hostnames = true # ec2에 dns 주소 부여
  enable_dns_support = true
  instance_tenancy = "default"

  tags = {
    Name = "test-vpc"
  }
}

data "aws_availability_zones" "available" {
  state = "available"
}

resource "aws_subnet" "test-pub_2a" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.0.0/20"
  map_public_ip_on_launch = true # 퍼블릭 IP 할당 여부
  availability_zone = data.aws_availability_zones.available.names[0] # 가용 영역의 이름을 가져온다(ap-northeast-2a)
  tags = {
    Name = "test-pub-2a"
  }
}

resource "aws_subnet" "test-pub_2b" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.16.0/20"
  map_public_ip_on_launch = true
  availability_zone = data.aws_availability_zones.available.names[1]
  tags = {
    Name = "test-pub-2b"
  }
}

resource "aws_subnet" "test-pub_2c" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.32.0/20"
  map_public_ip_on_launch = true
  availability_zone = data.aws_availability_zones.available.names[2]
  tags = {
    Name = "test-pub-2c"
  }
}

resource "aws_subnet" "test-pub_2d" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.48.0/20"
  map_public_ip_on_launch = true
  availability_zone = data.aws_availability_zones.available.names[3]
  tags = {
    Name = "test-pub-2d"
  }
}

resource "aws_eip" "ngw"{
}

resource "aws_nat_gateway" "test_ngw"{
  allocation_id = aws_eip.ngw.id
  subnet_id     = aws_subnet.test-pub_2d.id

  tags = {
    Name = "test-ngw"
  }
}


resource "aws_route_table" "test_pvt_rtb" {
  vpc_id = aws_vpc.test_vpc.id
   route {
    cidr_block = "0.0.0.0/0"
    nat_gateway_id = aws_nat_gateway.test_ngw.id
  }
  tags = {
    Name = "test-pvt-rtb"
  }
}

resource "aws_internet_gateway" "test_igw" {
  vpc_id = aws_vpc.test_vpc.id
  tags = {
    Name = "test-igw"
  }
}

resource "aws_subnet" "test-pvt_2a" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.64.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[0]
  tags = {
    Name = "test-pvt-2a"
  }
}

resource "aws_subnet" "test-pvt_2b" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.80.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[1]
  tags = {
    Name = "test-pvt-2b"
  }
}

resource "aws_subnet" "test-pvt_2c" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.96.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[2]
  tags = {
    Name = "test-pvt-2c"
  }
}

resource "aws_subnet" "test-pvt_2d" {
  vpc_id = aws_vpc.test_vpc.id
  cidr_block = "192.168.112.0/20"
  map_public_ip_on_launch = false
  availability_zone = data.aws_availability_zones.available.names[3]
  tags = {
    Name = "test-pvt-2d"
  }
}

resource "aws_route_table" "test_pub_rtb" {
  vpc_id = aws_vpc.test_vpc.id

  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.test_igw.id
  }
  tags = {
    Name = "test-pub-rtb"
  }
}

resource "aws_route_table_association" "test-pub_2a_association" {
  subnet_id = aws_subnet.test-pub_2a.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pub_2b_association" {
  subnet_id = aws_subnet.test-pub_2b.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pub_2c_association" {
  subnet_id = aws_subnet.test-pub_2c.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pub_2d_association" {
  subnet_id = aws_subnet.test-pub_2d.id
  route_table_id = aws_route_table.test_pub_rtb.id
}

resource "aws_route_table_association" "test-pvt_2a_association" {
  subnet_id = aws_subnet.test-pvt_2a.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

resource "aws_route_table_association" "test-pvt_2b_association" {
  subnet_id = aws_subnet.test-pvt_2b.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

resource "aws_route_table_association" "test-pvt_2c_association" {
  subnet_id = aws_subnet.test-pvt_2c.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

resource "aws_route_table_association" "test-pvt_2d_association" {
  subnet_id = aws_subnet.test-pvt_2d.id
  route_table_id = aws_route_table.test_pvt_rtb.id
}

### asg ###

resource "aws_security_group" "instance" {
  name   = var.instance_security_group_name
  vpc_id = aws_vpc.test_vpc.id

  ingress {
    from_port   = var.http_port
    to_port     = var.http_port
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  ingress {
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  ingress {
    from_port   = -1
    to_port     = -1
    protocol    = "icmp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

resource "aws_launch_configuration" "example" {
  image_id        = "ami-035da6a0773842f64"
  instance_type   = "t2.micro"
  security_groups = [aws_security_group.instance.id]
  key_name        = "test-key"
  user_data       = file("user-data.sh")

  # Required when using a launch configuration with an auto scaling group.
  lifecycle {
    create_before_destroy = true
  }
}

resource "aws_autoscaling_group" "example" {
  launch_configuration = aws_launch_configuration.example.name
  vpc_zone_identifier  = [
    aws_subnet.test-pub_2a.id,
    aws_subnet.test-pub_2c.id
  ]

  target_group_arns = [aws_lb_target_group.asg.arn]
  health_check_type = "ELB"

  min_size         = 1
  desired_capacity = 1
  max_size         = 4

  tag {
    key                 = "Name"
    value               = "terraform-asg-example"
    propagate_at_launch = true
  }
}

resource "aws_lb" "example" {

  name               = var.alb_name

  load_balancer_type = "application"
  subnets            = [
    aws_subnet.test-pub_2a.id,
    aws_subnet.test-pub_2b.id,
    aws_subnet.test-pub_2c.id,
    aws_subnet.test-pub_2d.id
  ]
  security_groups    = [aws_security_group.alb.id]
}

resource "aws_lb_listener" "http" {
  load_balancer_arn = aws_lb.example.arn
  port              = var.http_port
  protocol          = "HTTP"

  default_action {
    type             = "forward"
    target_group_arn = aws_lb_target_group.asg.arn
  }
}

resource "aws_lb_target_group" "asg" {

  name = var.alb_name

  port     = var.http_port
  protocol = "HTTP"
  vpc_id   = aws_vpc.test_vpc.id

  health_check {
    path                = "/health/"
    protocol            = "HTTP"
    matcher             = "200"
    interval            = 15
    timeout             = 3
    healthy_threshold   = 2
    unhealthy_threshold = 2
  }
}

resource "aws_security_group" "alb" {
  vpc_id = aws_vpc.test_vpc.id
  name   = var.alb_security_group_name

  # Allow inbound HTTP requests
  ingress {
    from_port   = var.http_port
    to_port     = var.http_port
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  # Allow all outbound requests
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

resource "aws_autoscaling_policy" "scale_in" {
  name                   = "ScaleInPolicy"
  autoscaling_group_name = aws_autoscaling_group.example.name
  adjustment_type        = "ChangeInCapacity"
  scaling_adjustment     = -1
  cooldown               = 300
}

resource "aws_cloudwatch_metric_alarm" "scale_in" {
  alarm_description   = "Monitors CPU utilization for Terramino ASG"
  alarm_actions       = [aws_autoscaling_policy.scale_in.arn]
  alarm_name          = "ScaleInAlarm"
  comparison_operator = "LessThanOrEqualToThreshold"
  namespace           = "AWS/EC2"
  metric_name         = "CPUUtilization"
  threshold           = "30"
  evaluation_periods  = "1"
  period              = "300"
  statistic           = "Average"

  dimensions = {
    AutoScalingGroupName = aws_autoscaling_group.example.name
  }
}
resource "aws_autoscaling_policy" "scale_out" {
  name                   = "ScaleOutPolicy"
  autoscaling_group_name = aws_autoscaling_group.example.name
  adjustment_type        = "ChangeInCapacity"
  scaling_adjustment     = 1
  cooldown               = 300
}

resource "aws_cloudwatch_metric_alarm" "scale_out" {
  alarm_description   = "Monitors CPU utilization for Terramino ASG"
  alarm_actions       = [aws_autoscaling_policy.scale_out.arn]
  alarm_name          = "ScaleOutAlarm"
  comparison_operator = "GreaterThanOrEqualToThreshold"
  namespace           = "AWS/EC2"
  metric_name         = "CPUUtilization"
  threshold           = "70"
  evaluation_periods  = "1"
  period              = "300"
  statistic           = "Average"

  dimensions = {
    AutoScalingGroupName = aws_autoscaling_group.example.name
  }
}

### RDS
resource "aws_db_subnet_group" "test_rds_subnet" {
  name              = "main"
  subnet_ids       = [aws_subnet.test-pvt_2a.id, aws_subnet.test-pvt_2d.id]

  tags = {
    Name = "test-rds-subnet"
  }
}

resource "aws_security_group" "test_sg_rds" {
  name   = var.rds_name
  vpc_id = aws_vpc.test_vpc.id

  ingress {
    from_port   = 3306
    to_port     = 3306
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

resource "aws_db_instance" "test_rds" {
  allocated_storage      = 20
  db_name                = "wordpress"
  engine                 = "mysql"
  engine_version         = "5.7"
  instance_class         = "db.t2.micro"
  username               = "yunhyeong"
  password               = "nwmc1023!!"
  parameter_group_name   = "default.mysql5.7"
  skip_final_snapshot    = true
  db_subnet_group_name   = aws_db_subnet_group.test_rds_subnet.name
  vpc_security_group_ids = [aws_security_group.test_sg_rds.id]
}


# vi outputs.tf
output "alb_dns_name" {
  value       = aws_lb.example.dns_name
  description = "The domain name of the load balancer"
}

output "rds_endpoint" {
  value       = aws_db_instance.test_rds.endpoint
  description = "The endpoint of the rds"
}



# vi outputs.tf

output "resource_group_name" {
  value = azurerm_resource_group.rg.name
}

output "public_ip_address" {
  value = azurerm_linux_virtual_machine.myterraformvm.public_ip_address
}

output "tls_private_key" {
  value     = tls_private_key.example_ssh.private_key_pem
  sensitive = true
}

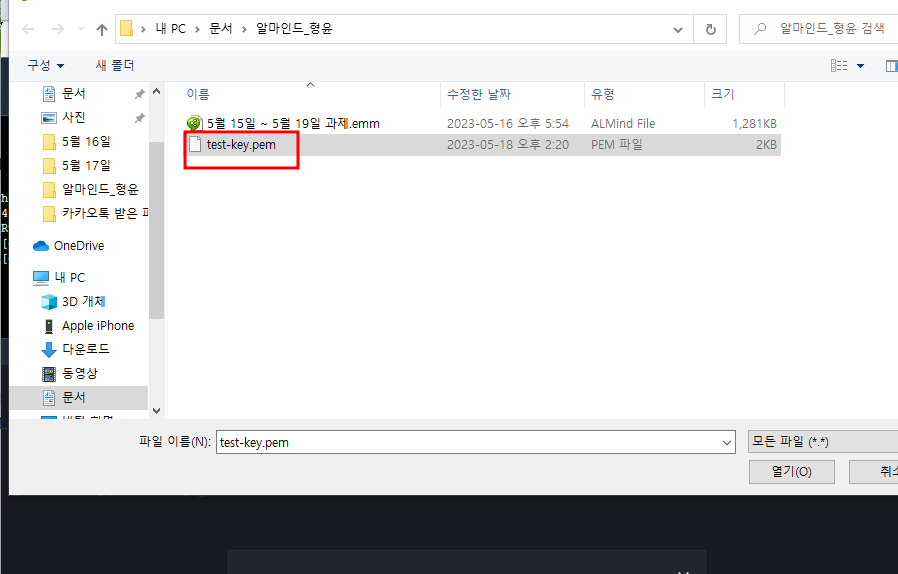

- 왼쪽 탭에서 test-key.pem내려 받기

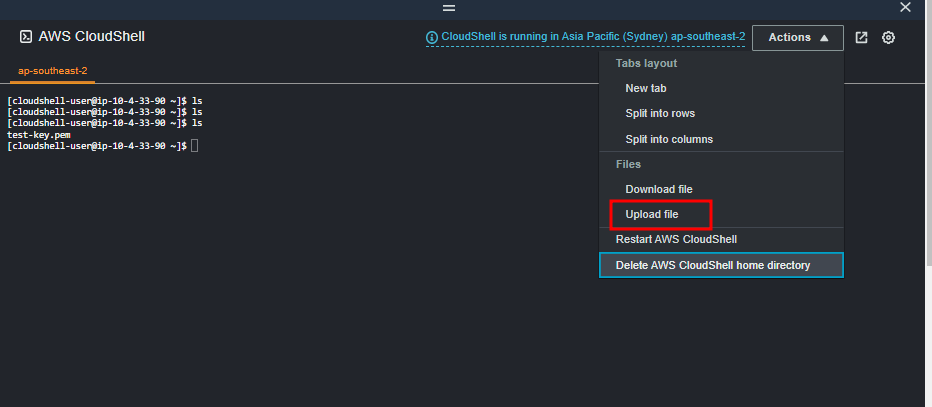

- test-key 파일 AWS cloudshell로 업로드

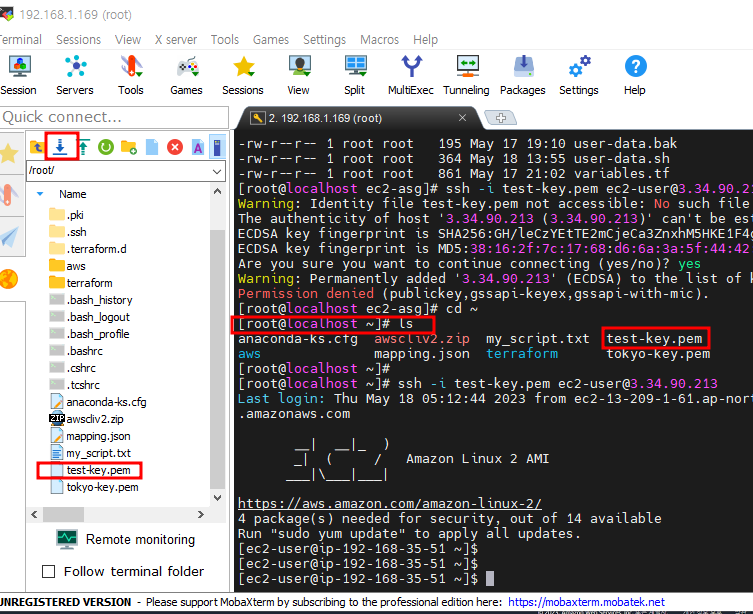

- cloudshell에서 내려받은 키를 올린다.

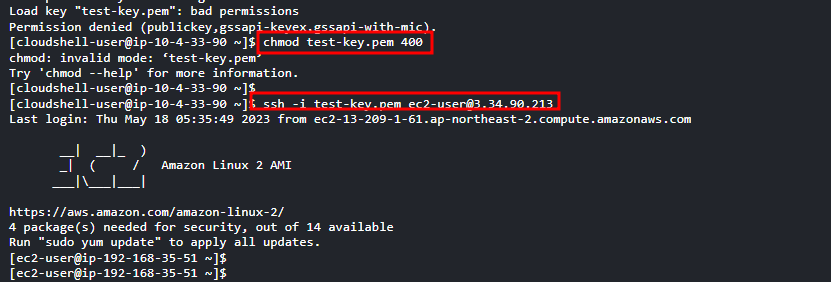

- test-key 권한 변경

- private 내에 있는 인스턴스에 접근(ami 이미지를 그대로 넣었기 때문에 public IP가 생김)

- RDS에 접근(RDS endpoint 활용)

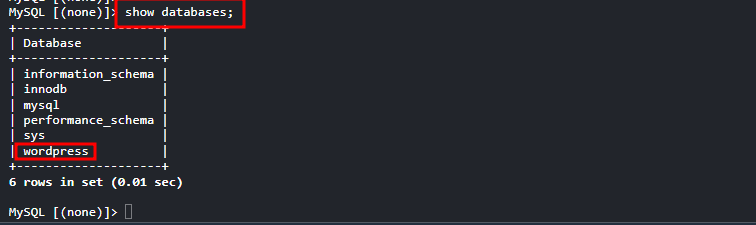

- database 확인



5. bastion_host

resource "aws_instance" "test_bastion" {
  ami                    = "ami-035da6a0773842f64"
  instance_type          = "t2.micro"
  subnet_id              = aws_subnet.test-pub_2a.id
  vpc_security_group_ids = [aws_security_group.instance.id]
  key_name               = "test-key"
  user_data              = file("bastion-data.sh")

  tags = {
    Name = "bastion-host"
  }
}

- asg경로안에 있는 main.tf 파일에 위의 내용  추가

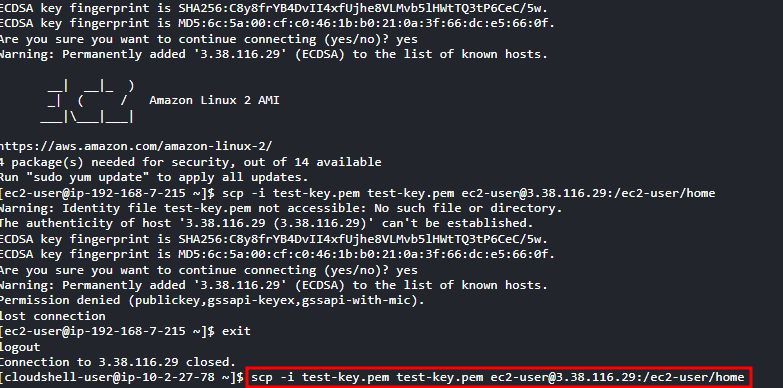

- scp -i test-key.pem test-key.pem ec2-user@3.38.116.29:/ec2-user/home -> bastion host에 키 전달

- cloudshell에서 bastion_host로 접근한다.



- bastion_host에서 다른 인스턴스로 접근

- sudo yes > /dev/null & ; ScaleOut 확인을 위한 부하 테스트(sudo yes > /dev/null &)

- sudo pkill -9 yes; 어느 정도 부하가 생기면 멈춘다; Scale IN알람이 발생
