AWS-CloudFormation

YunHyeong 2023. 5. 16. 17:48

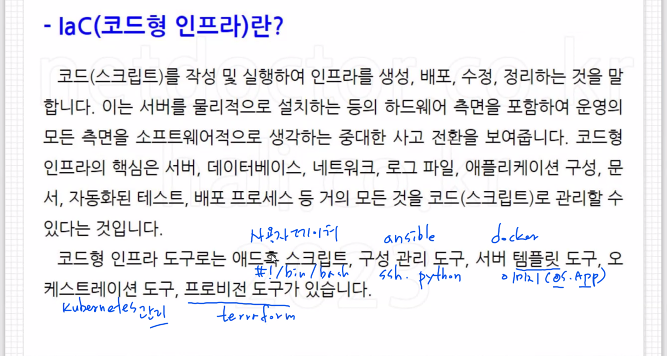

0. IaC

1. AWS CloudFormation(Azure Resource Manager, GCP Deployment Manager)

1.1 Resource 파일 생성

# vi test-vpc.yaml
AWSTemplateFormatVersion: 2010-09-09
Resources:
  VPC: ## 논리적 이름; 내가 정할 수 있다.
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: 192.168.0.0/16
      EnableDnsSupport: true
      EnableDnsHostnames: true
      InstanceTenancy: default
      Tags:
        - Key: Name
          Value: test-vpc
  PUB2A:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-2a
      VpcId: !Ref VPC
      CidrBlock: 192.168.0.0/20
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: test-pub-2a
  PUB2B:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-2b
      VpcId: !Ref VPC
      CidrBlock: 192.168.16.0/20
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: test-pub-2b
  PUB2C:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-2c
      VpcId: !Ref VPC
      CidrBlock: 192.168.32.0/20
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: test-pub-2c
  PUB2D:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-2d
      VpcId: !Ref VPC
      CidrBlock: 192.168.48.0/20
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: test-pub-2d
  PVT2A:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-2a
      VpcId: !Ref VPC
      CidrBlock: 192.168.64.0/20
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: test-pvt-2a
  PVT2B:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-2b
      VpcId: !Ref VPC
      CidrBlock: 192.168.80.0/20
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: test-pvt-2b
  PVT2C:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-2c
      VpcId: !Ref VPC
      CidrBlock: 192.168.96.0/20
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: test-pvt-2c
  PVT2D:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-2d
      VpcId: !Ref VPC
      CidrBlock: 192.168.112.0/20
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: test-pvt-2d
  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: test-igw
  VPCGatewayAttachment:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref VPC
      InternetGatewayId: !Ref InternetGateway
  PUBRTB:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: test-pub-rtb
  PVTRTB:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: test-pvt-rtb
  InternetRoute:
    Type: AWS::EC2::Route
    DependsOn: InternetGateway
    Properties:
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway
      RouteTableId: !Ref PUBRTB
  PUB2ARTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PUBRTB
      SubnetId: !Ref PUB2A
  PUB2BRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PUBRTB
      SubnetId: !Ref PUB2B
  PUB2CRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PUBRTB
      SubnetId: !Ref PUB2C
  PUB2DRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PUBRTB
      SubnetId: !Ref PUB2D
  PVT2ARTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PVTRTB
      SubnetId: !Ref PVT2A
  PVT2BRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PVTRTB
      SubnetId: !Ref PVT2B
  PVT2CRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PVTRTB
      SubnetId: !Ref PVT2C
  PVT2DRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PVTRTB
      SubnetId: !Ref PVT2D

# vi test-ec2.yaml
AWSTemplateFormatVersion: 2010-09-09
Mappings:
  RegionMap:
    ap-northeast-2:
      AMIID: ami-03db74b70e1da9c56
    ap-northeast-1:
      AMIID: ami-0df2ca8a354185e1e
Parameters:
  InstanceType:
    Type: String
    Default: t2.micro
    Description: Enter instance size. Default is t2.micro
  VPC:
    Type: String
    Default: vpc-01a276b266db7833b
    Description: VPC ID.
  Subnet:
    Type: String
    Default: subnet-01132b9dddcf71d3d
    Description: Subnet ID.
  AMI:
    Type: String
    Default: AMIID
    Description: The Linux AMI to use.
  Key:
    Type: String
    Default: test-key
    Description: The key used to access the instance.
Resources:
  InstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: "test-sg-web"
      GroupDescription: "test-sg-web"
      VpcId: !Ref VPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: '80'
          ToPort: '80'
          CidrIp: 0.0.0.0/0
        - IpProtocol: tcp
          FromPort: '22'
          ToPort: '22'
          CidrIp: 123.142.252.25/32
        - IpProtocol: icmp
          FromPort: '-1'
          ToPort: '-1'
          CidrIp: 0.0.0.0/0
      SecurityGroupEgress:
        - IpProtocol: -1
          CidrIp: 0.0.0.0/0
  EC2Insteance:
    Type: AWS::EC2::Instance
    Properties:
      SubnetId: !Ref Subnet
#      ImageId: !Ref AMI
      ImageId: !FindInMap [ RegionMap, !Ref "AWS::Region", !Ref AMI ]
      InstanceType:
        Ref: InstanceType
      KeyName: !Ref Key
      SecurityGroupIds:
        - Ref: InstanceSecurityGroup
      BlockDeviceMappings:
        - DeviceName: /dev/xvda
          Ebs:
            VolumeSize: 8
        - DeviceName: /dev/xvdb
          Ebs:
            VolumeSize: 8
      Tags:
        - Key: Name
          Value: test-ec2

      UserData:
        Fn::Base64: |
          #cloud-boothook
          #!/bin/bash
          yum install -y httpd
          systemctl enable --now httpd
          echo "Hello World!" > /var/www/html/index.html
Outputs:
  PublicIp:
    Description: PublicIp Output
    Value: {"Fn::GetAtt": ["EC2Insteance","PublicIp"]}

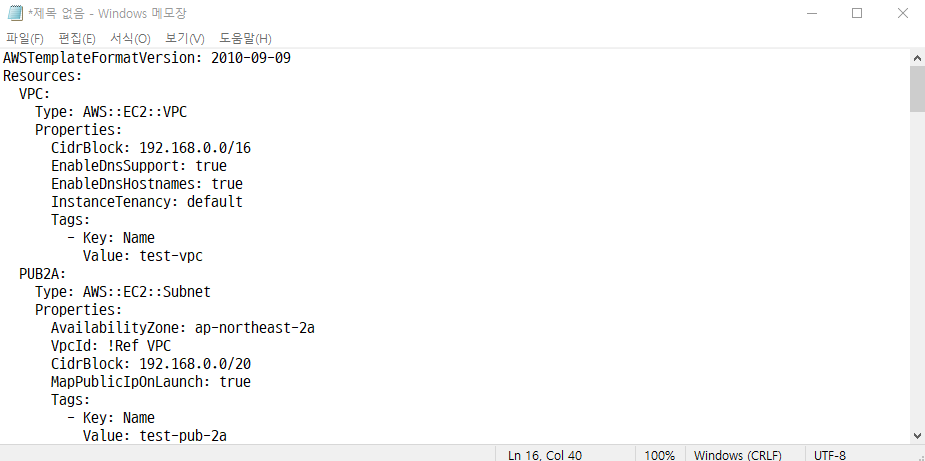

- 위의 내용을 복사

- yaml 파일 만들기

- 복사한 내용을 붙여 넣는다.

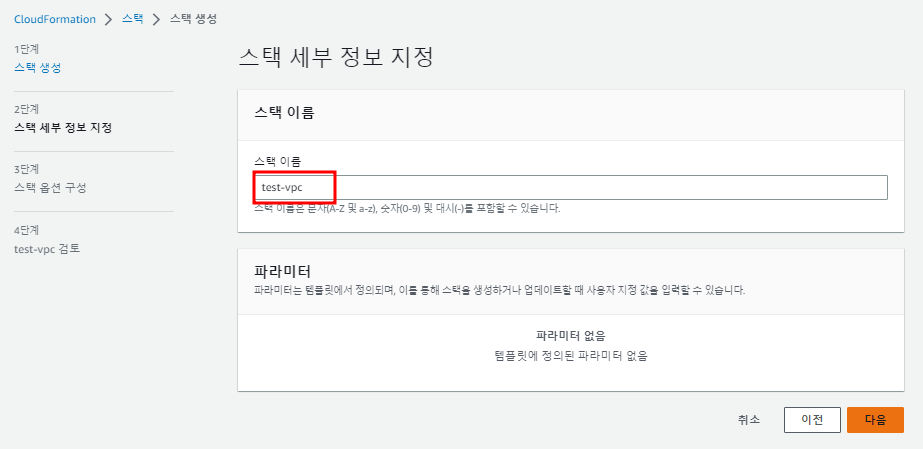

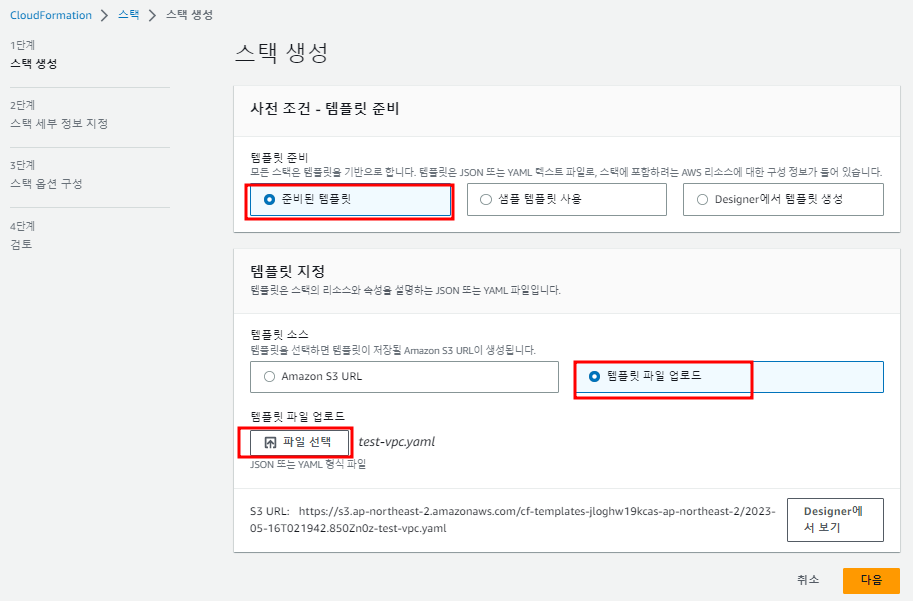

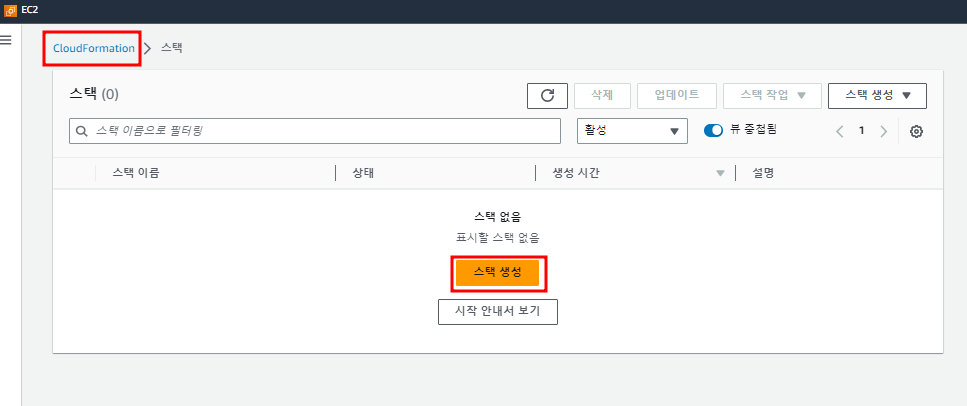

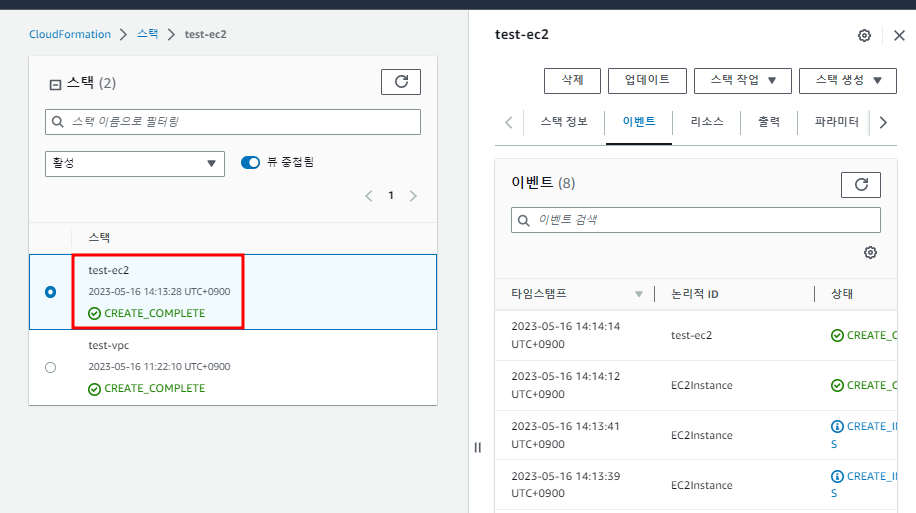

1.2 CloudFormation 스택 생성

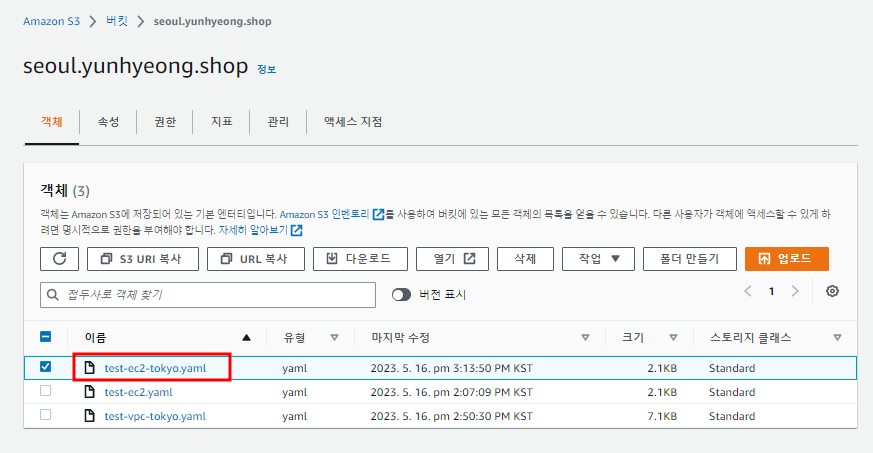

- CloudFormation은 자체적으로 저장 공간이 없기 때문에 파일을 업로드 하면 S3에 자동으로 공간이 만들어진다.

- 스택 옵션 구성은 생략

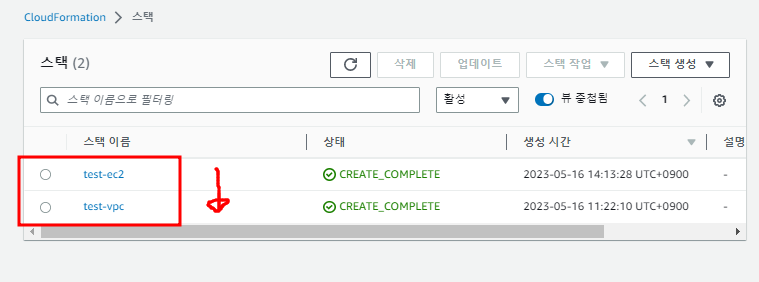

- 이대로 스택을 생성한다.

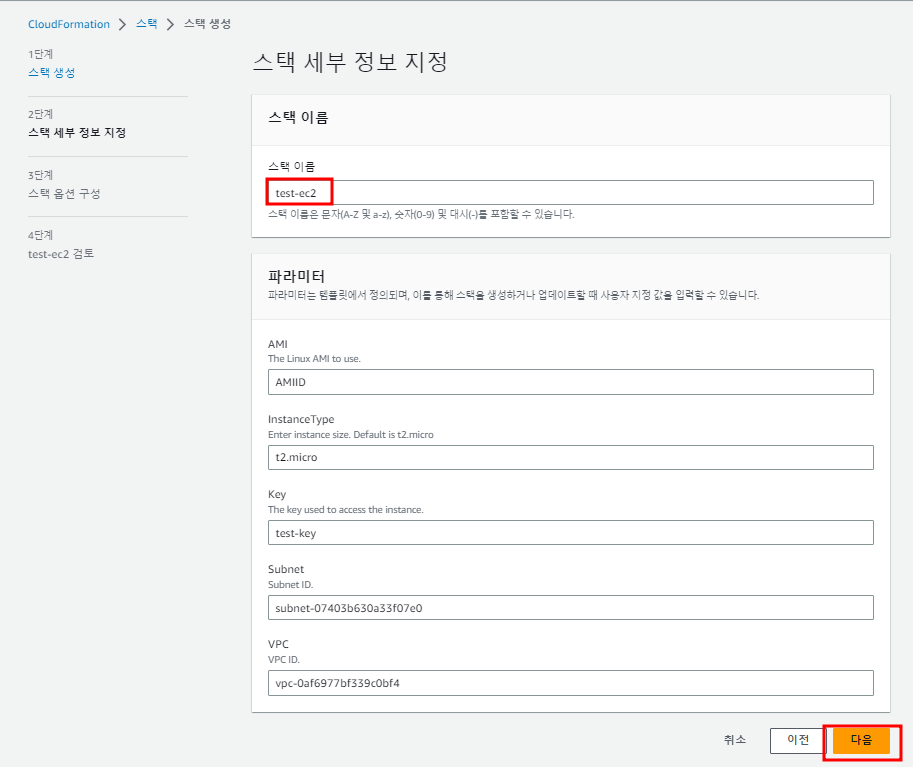

1.3 Mappings, Parameters, Resources, Ec2 instance

AWSTemplateFormatVersion: 2010-09-09
Mappings:
  RegionMap:
    ap-northeast-2:
      AMIID: ami-035da6a0773842f64
    ap-northeast-1:
      AMIID: ami-08928044842b396f0
Parameters:
  InstanceType:
    Type: String
    Default: t2.micro
    Description: Enter instance size. Default is t2.micro
  VPC:
    Type: String
    Default: vpc-0af6977bf339c0bf4
    Description: VPC ID.
  Subnet:
    Type: String
    Default: subnet-07403b630a33f07e0
    Description: Subnet ID.
  AMI:
    Type: String
    Default: AMIID
    Description: The Linux AMI to use.
  Key:
    Type: String
    Default: test-key
    Description: The key used to access the instance.
Resources:
  InstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: "test-sg-web"
      GroupDescription: "test-sg-web"
      VpcId: !Ref VPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: '80'
          ToPort: '80'
          CidrIp: 0.0.0.0/0
        - IpProtocol: tcp
          FromPort: '22'
          ToPort: '22'
          CidrIp: 123.142.252.25/32
        - IpProtocol: icmp
          FromPort: '-1'
          ToPort: '-1'
          CidrIp: 0.0.0.0/0
      SecurityGroupEgress:
        - IpProtocol: -1
          CidrIp: 0.0.0.0/0
  EC2Instance:
    Type: AWS::EC2::Instance
    Properties:
      SubnetId: !Ref Subnet
      ImageId: !FindInMap [ RegionMap, !Ref "AWS::Region", !Ref AMI ]
      InstanceType:
        Ref: InstanceType
      KeyName: !Ref Key
      SecurityGroupIds:
        - Ref: InstanceSecurityGroup
      BlockDeviceMappings:
        - DeviceName: /dev/xvda
          Ebs:
            VolumeSize: 8
        - DeviceName: /dev/xvdb
          Ebs:
            VolumeSize: 8
      Tags:
        - Key: Name
          Value: test-ec2

      UserData:
        Fn::Base64: |
          #cloud-boothook
          #!/bin/bash
          yum install -y httpd
          systemctl enable --now httpd
          echo "Hello World!" > /var/www/html/index.html
Outputs:
  PublicIp:
    Description: PublicIp Output
    Value: {"Fn::GetAtt": ["EC2Instance","PublicIp"]}

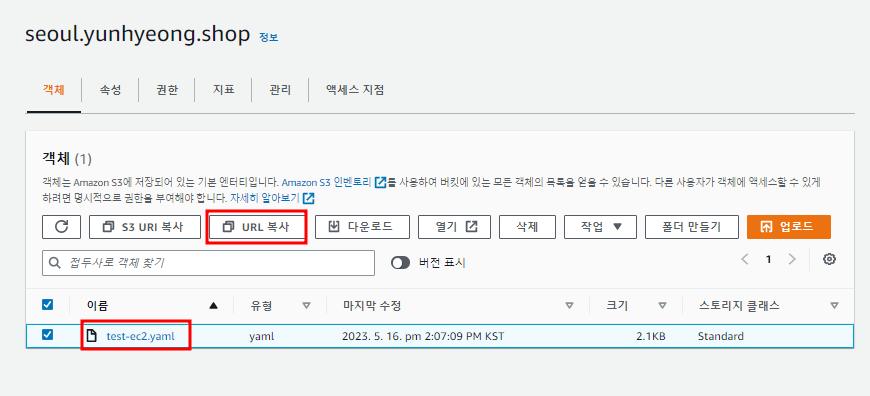

- test-ec2.yaml 파일 만들기

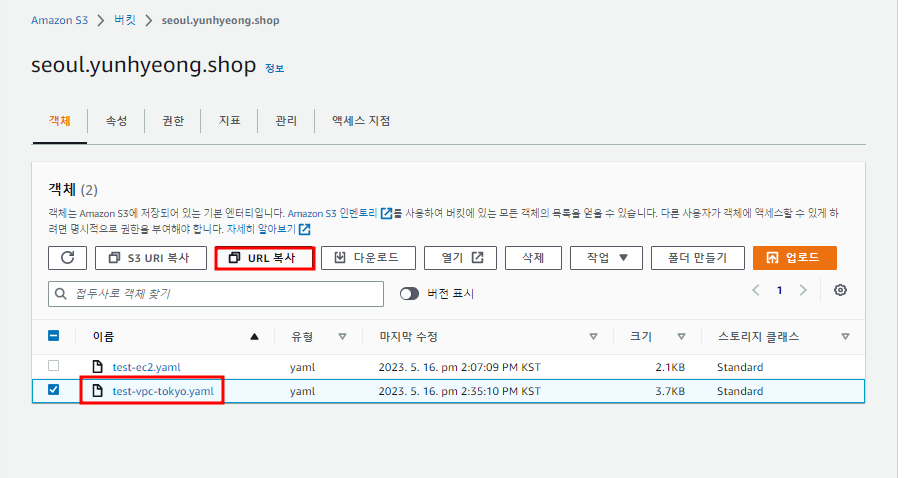

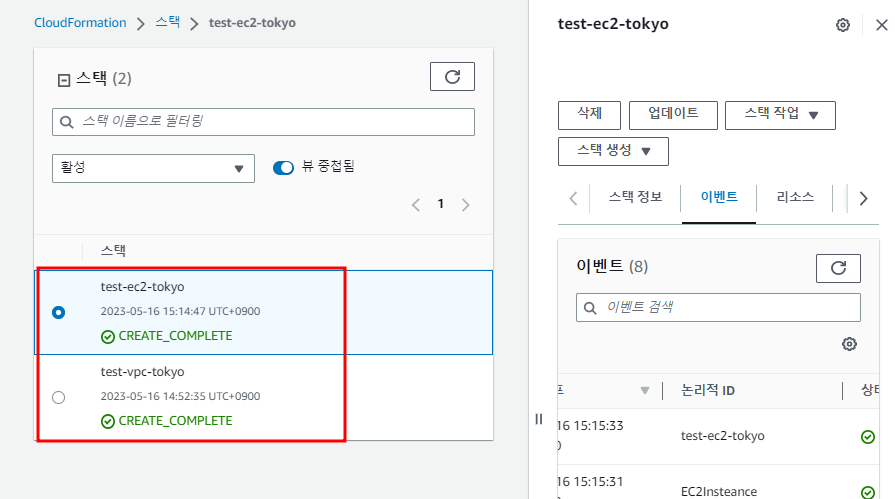

2. Tokyo CloudFormation

1.1 Resource 파일 생성

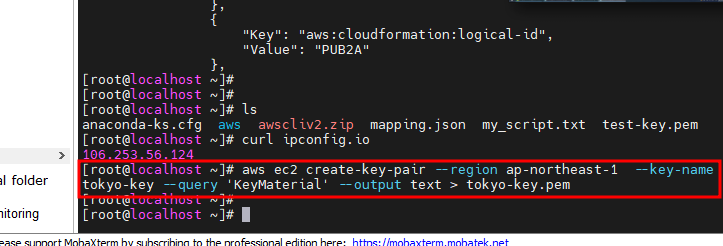

- 서울 리전의 key를 tokyo-key로 변경하여 도쿄리전으로 보낸다

# vi test-vpc.yaml
AWSTemplateFormatVersion: 2010-09-09
Resources:
  VPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: 192.168.0.0/16
      EnableDnsSupport: true
      EnableDnsHostnames: true
      InstanceTenancy: default
      Tags:
        - Key: Name
          Value: test-vpc
  PUB2A:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-1a
      VpcId: !Ref VPC
      CidrBlock: 192.168.0.0/20
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: test-pub-1a
  PUB2C:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-1c
      VpcId: !Ref VPC
      CidrBlock: 192.168.32.0/20
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: test-pub-1c
  PUB2D:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-1d
      VpcId: !Ref VPC
      CidrBlock: 192.168.48.0/20
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: test-pub-1d
  PVT2A:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-1a
      VpcId: !Ref VPC
      CidrBlock: 192.168.64.0/20
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: test-pvt-1a
  PVT2C:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-1c
      VpcId: !Ref VPC
      CidrBlock: 192.168.96.0/20
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: test-pvt-1c
  PVT2D:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-1d
      VpcId: !Ref VPC
      CidrBlock: 192.168.112.0/20
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: test-pvt-1d
  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: test-igw
  VPCGatewayAttachment:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref VPC
      InternetGatewayId: !Ref InternetGateway
  PUBRTB:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: test-pub-rtb
  PVTRTB:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: test-pvt-rtb
  InternetRoute:
    Type: AWS::EC2::Route
    DependsOn: InternetGateway
    Properties:
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway
      RouteTableId: !Ref PUBRTB
  PUB2ARTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PUBRTB
      SubnetId: !Ref PUB2A
  PUB2BRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PUBRTB
      SubnetId: !Ref PUB2B
  PUB2CRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PUBRTB
      SubnetId: !Ref PUB2C
  PUB2DRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PUBRTB
      SubnetId: !Ref PUB2D
  PVT2ARTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PVTRTB
      SubnetId: !Ref PVT2A
  PVT2BRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PVTRTB
      SubnetId: !Ref PVT2B
  PVT2CRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PVTRTB
      SubnetId: !Ref PVT2C
  PVT2DRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PVTRTB
      SubnetId: !Ref PVT2D
AWSTemplateFormatVersion: 2010-09-09
Resources:
  VPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: 192.168.0.0/16
      EnableDnsSupport: true
      EnableDnsHostnames: true
      InstanceTenancy: default
      Tags:
        - Key: Name
          Value: test-vpc
  PUB1A:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-1a
      VpcId: !Ref VPC
      CidrBlock: 192.168.0.0/20
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: test-pub-1a
  PUB1C:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-1c
      VpcId: !Ref VPC
      CidrBlock: 192.168.32.0/20
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: test-pub-1c
  PUB1D:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-1d
      VpcId: !Ref VPC
      CidrBlock: 192.168.48.0/20
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: test-pub-1d
  PVT1A:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-1a
      VpcId: !Ref VPC
      CidrBlock: 192.168.64.0/20
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: test-pvt-1a
  PVT1C:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-1c
      VpcId: !Ref VPC
      CidrBlock: 192.168.96.0/20
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: test-pvt-1c
  PVT1D:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: ap-northeast-1d
      VpcId: !Ref VPC
      CidrBlock: 192.168.112.0/20
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: test-pvt-1d
  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: test-igw
  VPCGatewayAttachment:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref VPC
      InternetGatewayId: !Ref InternetGateway
  PUBRTB:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: test-pub-rtb
  PVTRTB:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: test-pvt-rtb
  InternetRoute:
    Type: AWS::EC2::Route
    DependsOn: InternetGateway
    Properties:
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway
      RouteTableId: !Ref PUBRTB
  PUB1ARTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PUBRTB
      SubnetId: !Ref PUB1A
  PUB1CRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PUBRTB
      SubnetId: !Ref PUB1C
  PUB1DRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PUBRTB
      SubnetId: !Ref PUB1D
  PVT1ARTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PVTRTB
      SubnetId: !Ref PVT1A
  PVT1CRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PVTRTB
      SubnetId: !Ref PVT1C
  PVT1DRTBAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PVTRTB
      SubnetId: !Ref PVT1D

- test-vpc-tokyo.yaml 파일을 만들고 S3에 업로드

# vi test-ec2-tokyo.yaml
AWSTemplateFormatVersion: 2010-09-09
Mappings:
  RegionMap:
    ap-northeast-1:
      AMIID: ami-08928044842b396f0
    ap-northeast-2:
      AMIID: ami-035da6a0773842f64
Parameters:
  InstanceType:
    Type: String
    Default: t2.micro
    Description: Enter instance size. Default is t2.micro
  VPC:
    Type: String
    Default: vpc-0217a9890f3e74e8e
    Description: VPC ID.
  Subnet:
    Type: String
    Default: subnet-07ba1bcb85733fa10
    Description: Subnet ID.
  AMI:
    Type: String
    Default: AMIID
    Description: The Linux AMI to use.
  Key:
    Type: String
    Default: tokyo-key
    Description: The key used to access the instance.
Resources:
  InstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: "test-sg-web"
      GroupDescription: "test-sg-web"
      VpcId: !Ref VPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: '80'
          ToPort: '80'
          CidrIp: 0.0.0.0/0
        - IpProtocol: tcp
          FromPort: '22'
          ToPort: '22'
          CidrIp: 106.253.56.124/32
        - IpProtocol: icmp
          FromPort: '-1'
          ToPort: '-1'
          CidrIp: 0.0.0.0/0
      SecurityGroupEgress:
        - IpProtocol: -1
          CidrIp: 0.0.0.0/0
  EC2Insteance:
    Type: AWS::EC2::Instance
    Properties:
      SubnetId: !Ref Subnet
      ImageId: !FindInMap [ RegionMap, !Ref "AWS::Region", !Ref AMI ]
      InstanceType:
        Ref: InstanceType
      KeyName: !Ref Key
      SecurityGroupIds:
        - Ref: InstanceSecurityGroup
      BlockDeviceMappings:
        - DeviceName: /dev/xvda
          Ebs:
            VolumeSize: 8
        - DeviceName: /dev/xvdb
          Ebs:
            VolumeSize: 8
      Tags:
        - Key: Name
          Value: test-ec2
      UserData:
        Fn::Base64: |
          #cloud-boothook
          #!/bin/bash
          yum install -y httpd
          systemctl enable --now httpd
          echo "Hello Tokyo!" > /var/www/html/index.html
Outputs:
  PublicIp:
    Description: PublicIp Output
    Value: {"Fn::GetAtt": ["EC2Insteance","PublicIp"]}

- test-ec2-tokyo.yaml 파일을 만들고 S3에 업로드

- CloudFormation에서 vpc와 ec2 s3 주소를 복사하여 스택 생성

3. 삭제하기

- ec2 -> vpc 순서대로 삭제

- 키페어는 키페어 항목에서 직접 삭제

4. Terraform

--- Terraform 이란?
과거 시스템 관리자는 인프라를 수동으로 구축하고 관리했습니다. 그리고 모든 서버, 데이터베이스, 로드 밸런서, 네트워크를 수작업으로 생성하고 관리했기 때문에 서버 다운, 구성 실수, 배포 오류가 자주 발생하였습니다. 테라폼은 간단한 선언적 언어를 사용하여 인프라를 코드로 정의합니다. 몇 가지 명령을 사용하여 AWS, Azure, GCP 같은 다양한 퍼블릭 클라우드 공급자와 오픈스택, ESXi 같은 프라이빗 클라우드와 가상화 플랫폼에서 해당 인프라를 배포 및 관리하게 합니다.

--- Terraform 작동 방식
테라폼은 해시코프사에서 Go언어로 개발한 오픈소스도구입니다. 운영체제마다 바이너리 파일이 존재하는데 Go 코드는 하나의 바이너리 파일로 컴파일되며 Terraform이라는 명령어로 실행할 수 있습니다. 이 Terraform 명령어를 사용하여 노트북, 데스크탑, 빌드 서버 또는 다른 컴퓨터에서든 인프라를 배포할 수 있으며 이를 위해 추가 인프라(마스터, 에이전트)를 생성할 필요가 없습니다. 즉 Terraform 명령어가 AWS, Azure, GCP, Openstack 등의 Provider를 대신해 API를 호출하여 리소스를 생성합니다.
테라폼은 생성하려는 인프라 정보가 담겨 있는 텍스트로 이루어진 테라폼 구성 파일을 생성하여 API를 호출합니다. 이러한 구성 값들이 '코드형 인프라'를 만드는 바로 그 '코드'입니다. 팀의 누군가가 인프라를 수정하고자 할 때, 서버에 직접 접속하여 작업하거나 수작업으로 수정하는 대신 테라폼을 사용하여 구성 파일을 수정할 있습니다.

--- Terraform 주요 명령어
- *.tf 스크립트 작성
- terraform init : terraform 명령어에는 테라폼의 기본 기능이 포함되어 있지만 모든 공급자(AWS, Azure, GCP 등)에 대한 코드가 포함되어 있지 않습니다. 그렇게 때문에 terraform init 명령어를 실행하여 테라폼에 코드를 스캔하도록 지시하고 어느 공급자인지 확인하고, 필요한 코드를 다운로드하도록 해야 합니다. 기본적으로 공급자 코드는 테라폼의 .terraform 폴더에 플러그인 형태로 다운로드됩니다.

- terraform plan : 테라폼이 구성 파일을 사용하여 작업을 수행하기 전에 코드의 온전성을 검사할 수 있습니다. plan 명령어는 리눅스에서 쓰이는 diff 명령의 결괏값과 유사합니다. + 가 있는 항목은 추가되고, - 가 있는 항목은 삭제된다는 뜻입니다. ~ 가 있는 항목은 수정됩니다.

- terraform apply : 테라폼의 구성 파일을 실행하려면 terraform apply 명령어를 실행합니다.

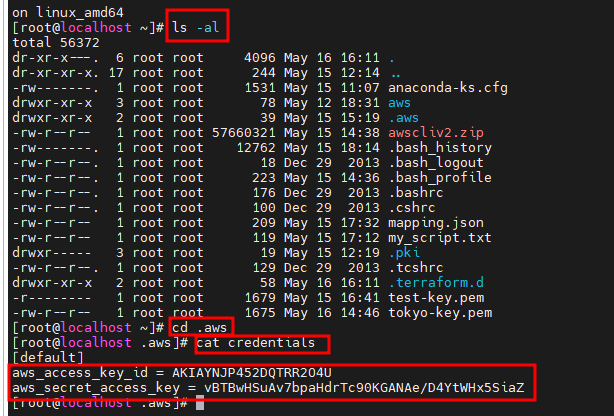

- 사용자 키 확인

yum install -y yum-utils
yum-config-manager --add-repo https://rpm.releases.hashicorp.com/RHEL/hashicorp.repo
yum -y install terraform

ls -al
cat credentials
export AWS_ACCESS_KEY_ID=AKIAYNJP452DQTRR2O4U
export AWS_SECRET_ACCESS_KEY=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

- Terraform 설치

- aws cli 자격증명때 사용한 키를 넣어준다.

# mkdir terraform
# mkdir tf-test && cd $_
# vi main.tf
provider "aws" {
  region = "ap-northeast-2"
}

resource "aws_instance" "example" {
  ami                    = "ami-035da6a0773842f64"
  instance_type          = "t2.micro"
  vpc_security_group_ids = [aws_security_group.instance.id]

  user_data = <<-EOF
              #!/bin/bash
              #cloud-boothook ## 사용자 데이터 변경시 변경 내용을 적용하는 명령어
              yum install -y httpd
              systemctl enable --now httpd
              echo "<h1>example</h1>" > /var/www/html/index.html
              EOF

  tags = {
    Name = "terraform-example"
  }
}

resource "aws_security_group" "instance" {

  name = var.security_group_name

  ingress {
    from_port   = 80
    to_port     = 80
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  egress {
    from_port        = 0
    to_port          = 0
    protocol         = "-1"
    cidr_blocks      = ["0.0.0.0/0"]
  }

  tags = {
    Name = "tf-web"
  }

}

variable "security_group_name" {
  description = "The name of the security group"
  type        = string
  default     = "terraform-example-instance"
}

output "public_ip" {
  value       = aws_instance.example.public_ip
  description = "The public IP of the Instance"
}

# terraform init
# terraform plan
# terraform apply
# terraform destroy

- ec2 생성

- 변경 사항 생기면 terraform plan 후 terraform apply

'Cloud Solution Architect > AWS' 카테고리의 다른 글

Terraform - VPC, EC2, Autoscaling (0)	2023.05.18
AWS-CLI (0)	2023.05.15
2차 세미 프로젝트 - Openstack (0)	2023.05.11
AWS - Amazon Inspector, CloudWatchLog, NAT Instance (0)	2023.05.02
AWS - CloudFront, Cloud 보안, ACM을 활용한 HTTPS 프로토콜 접속 (0)	2023.05.01

현재글AWS-CloudFormation

YunHyeong

Today :
Yesterday :

YunHyeong
